Lab 1.6 - Implement Rate Limiting

The API Protection Profile allows a BIG-IP administrator to throttle the amount of connections to an API through the use of Key Names.

Task 1 - Test pre-rate limiting Access

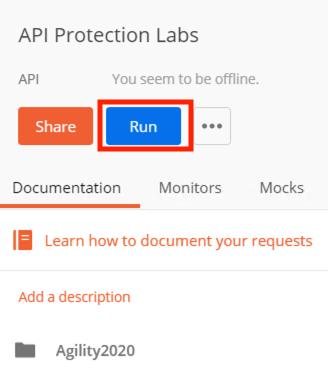

1. From Postman, Select the request JWT-Retrieve User Attributes

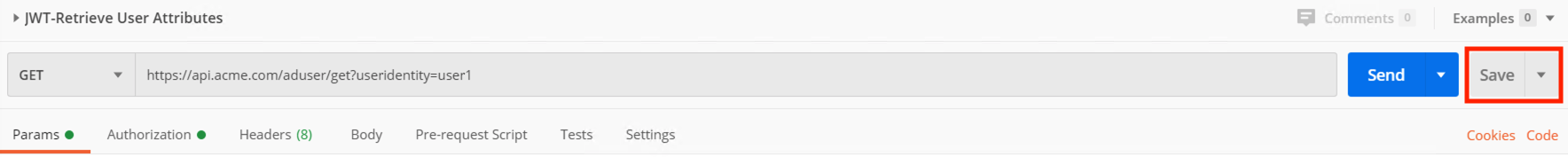

2. Click Save, so the current token is saved as part of the API request.

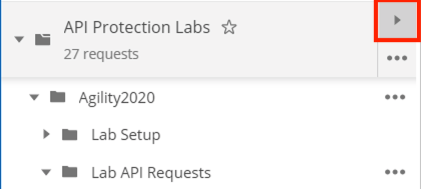

3. Click the arrow located to the right of the API Portection labs Collection.



4. Click Run

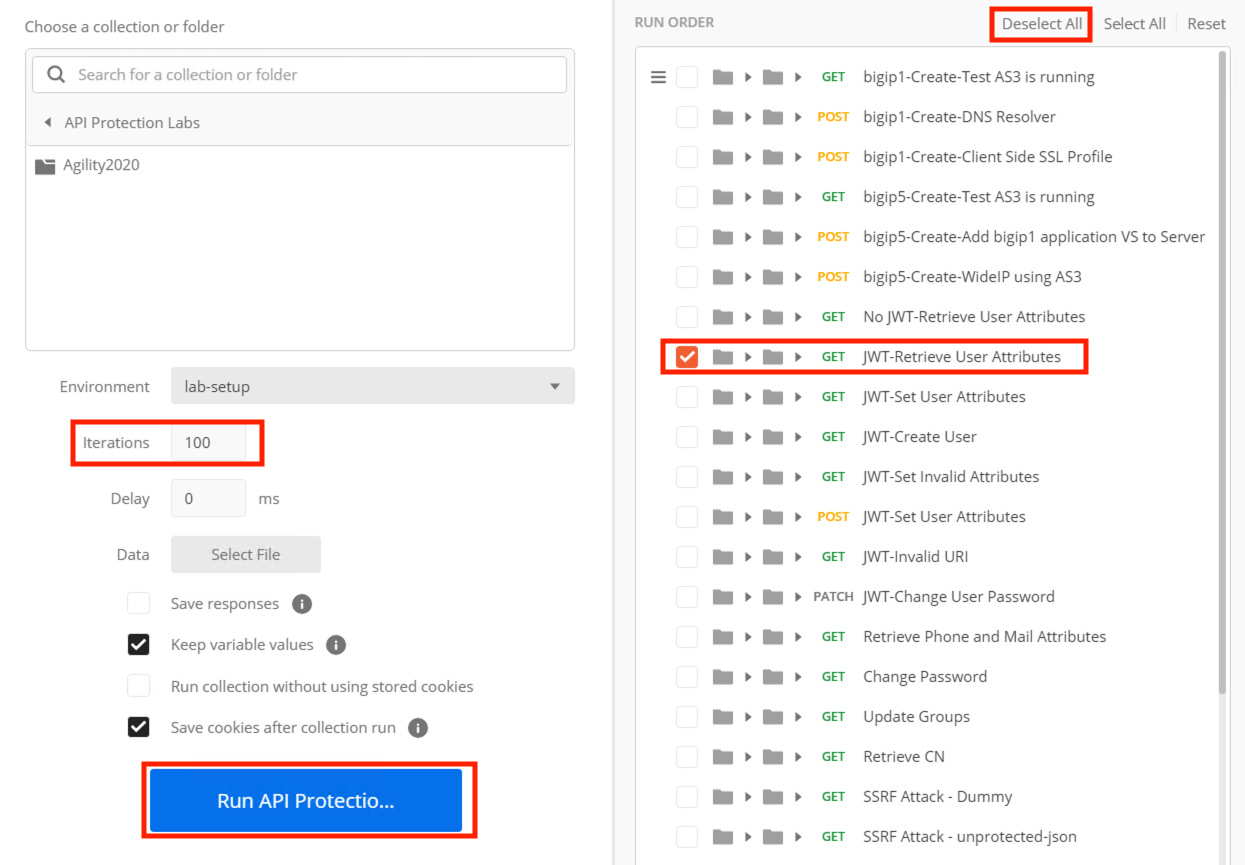

5. Deselect all requests except JWT-Retrieve User Attributes

6. Set the iterations to 100

7. Click Run API Protection

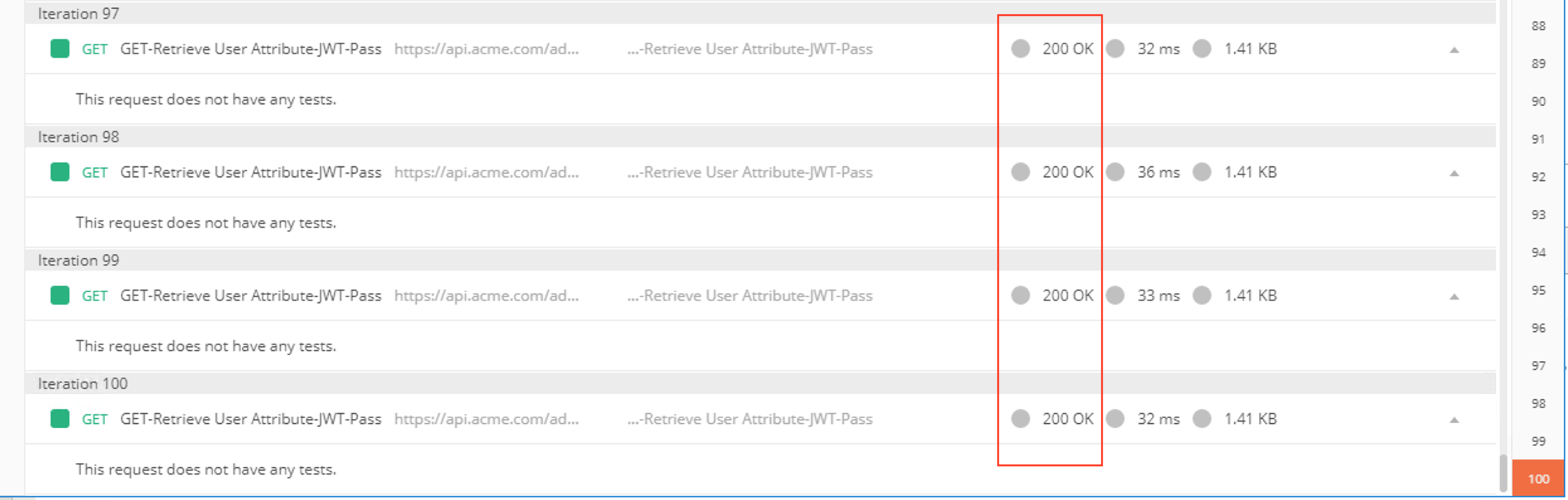

8. You receive a 200 OK for every request. Leave Runner open



Task 2 - Define the rate limiting keys

1. Navigate to API Protection >> Profile. Click Profile to modify the previously created API protection Profile. Not the + Plus symbol.



2. Click api-protection

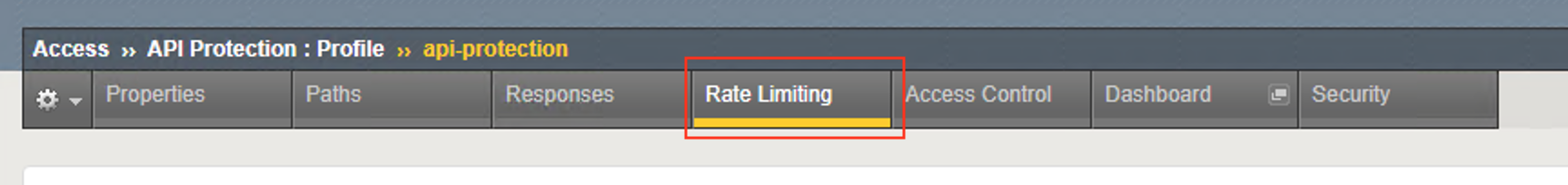

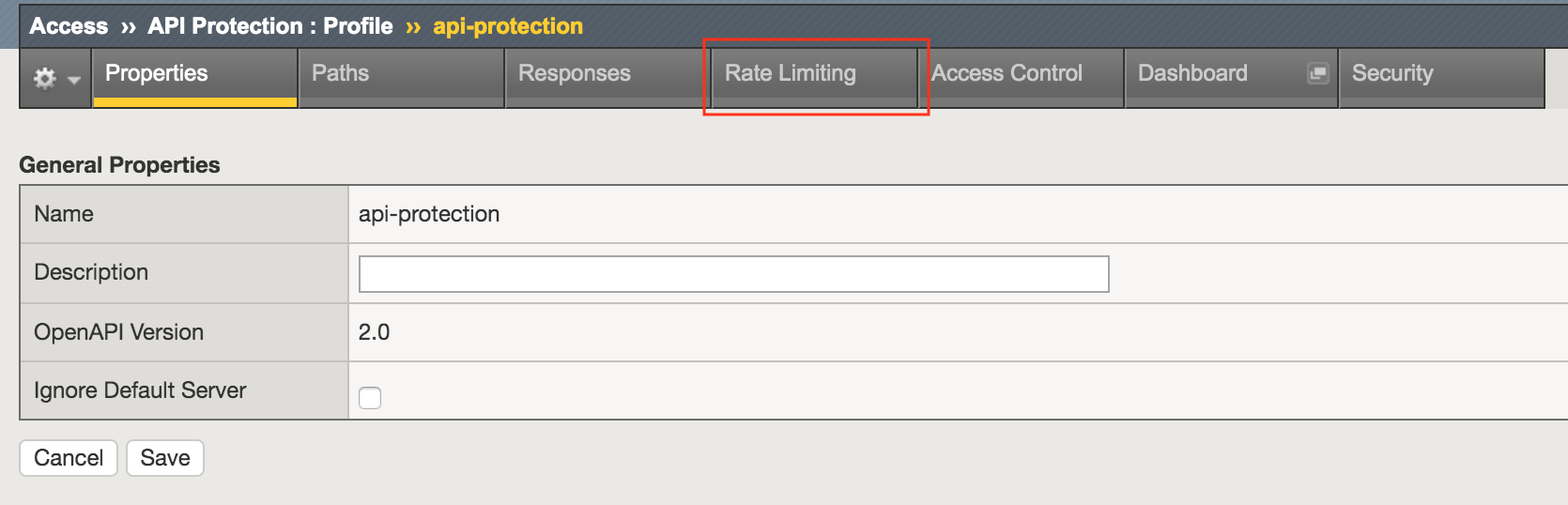

3. Click Rate Limiting from the top ribbon



   Note

   The API protection profile default settings contains five Key Names created, but their values are empty. Additional Keys can be created if necessary

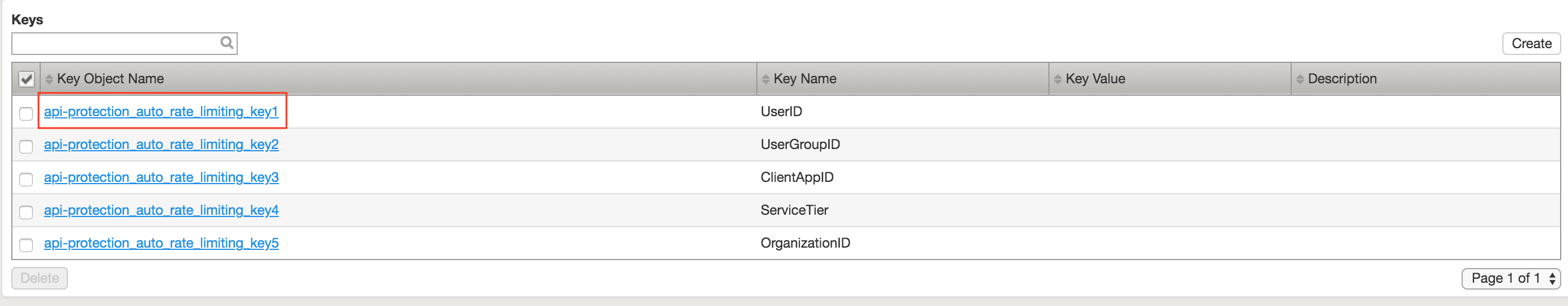

4. Click api-protection_auto_rate_limiting_key1

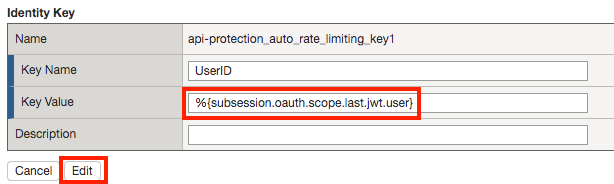

5. Enter the Key Value %{subsession.oauth.scope.last.jwt.user}

6. Click Edit



7. Click api-protection_auto_rate_limiting_key2

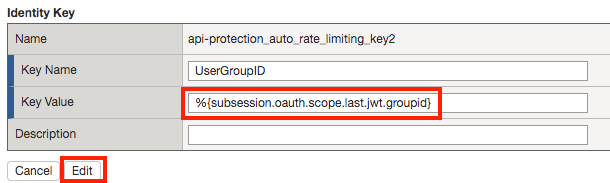

8. Enter the Key Value %{subsession.oauth.scope.last.jwt.groupid}

9. Click Edit



10. Click api-protection_auto_rate_limiting_key3

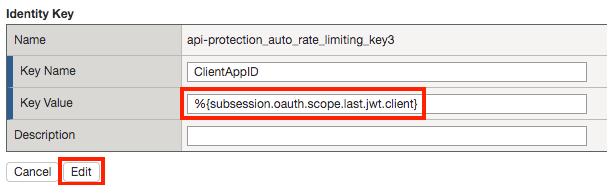

11. Enter the Key Value %{subsession.oauth.scope.last.jwt.client}

12. Click Edit



13. Click api-protection_auto_rate_limiting_key4

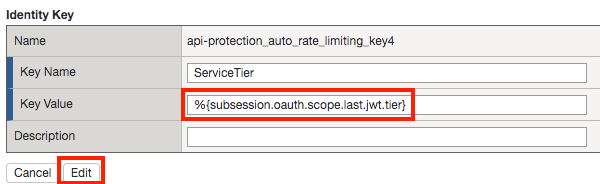

14. Enter the Key Value %{subsession.oauth.scope.last.jwt.tier}

15. Click Edit

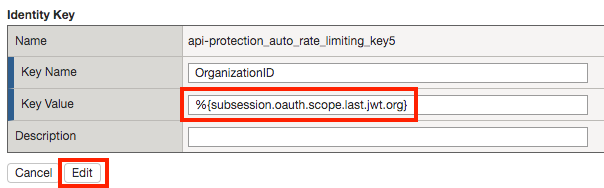

16. Click api-protection_auto_rate_limiting_key5

17. Enter the Key Value %{subsession.oauth.scope.last.jwt.org }

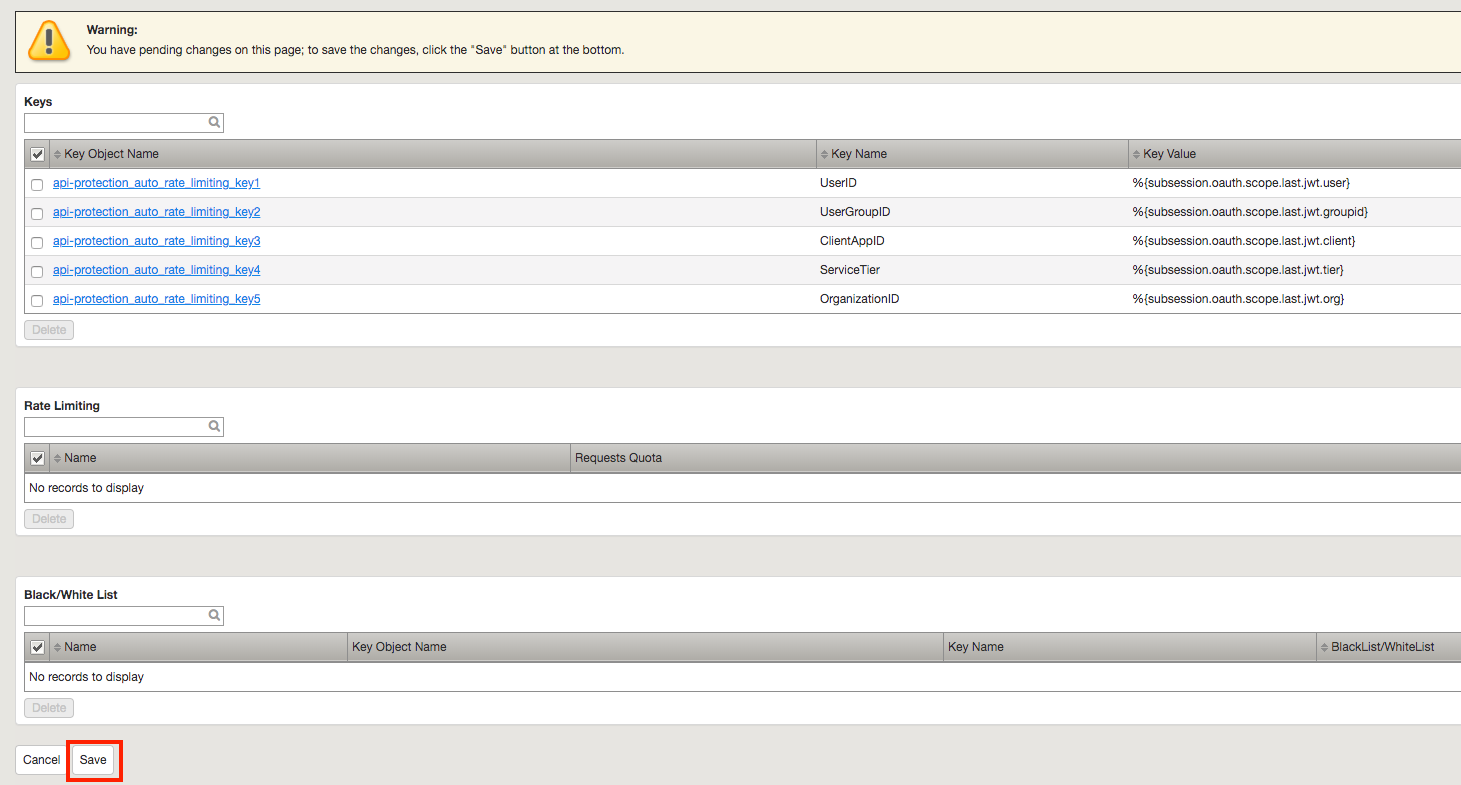

18. Click Edit

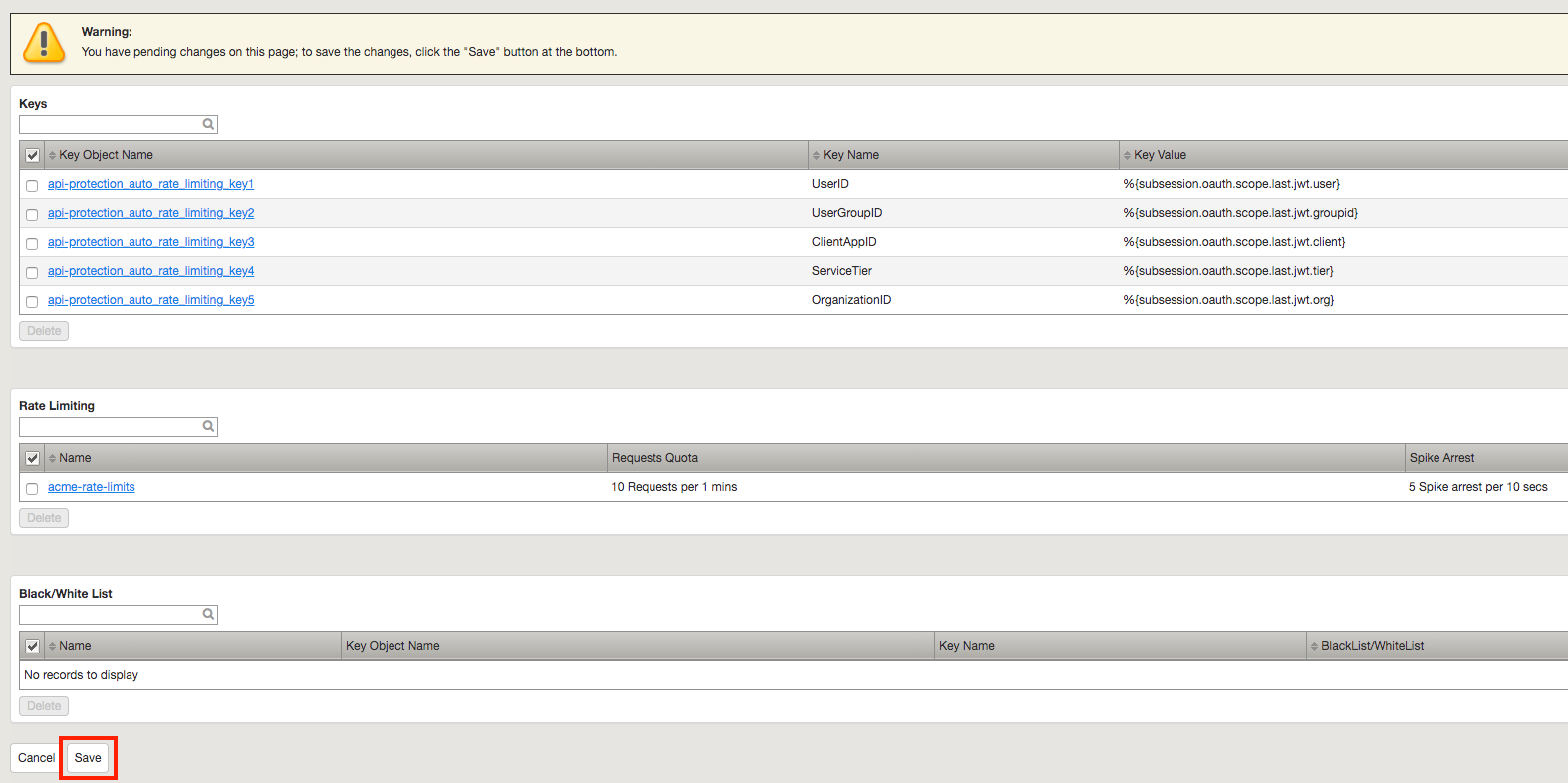

19. Click Save



Task 3 - Create a Rate Limiting Policy

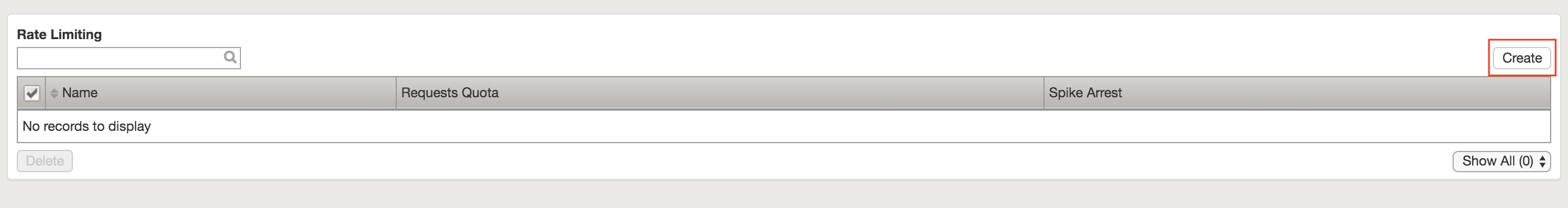

1. Click Create in the rate limiting section

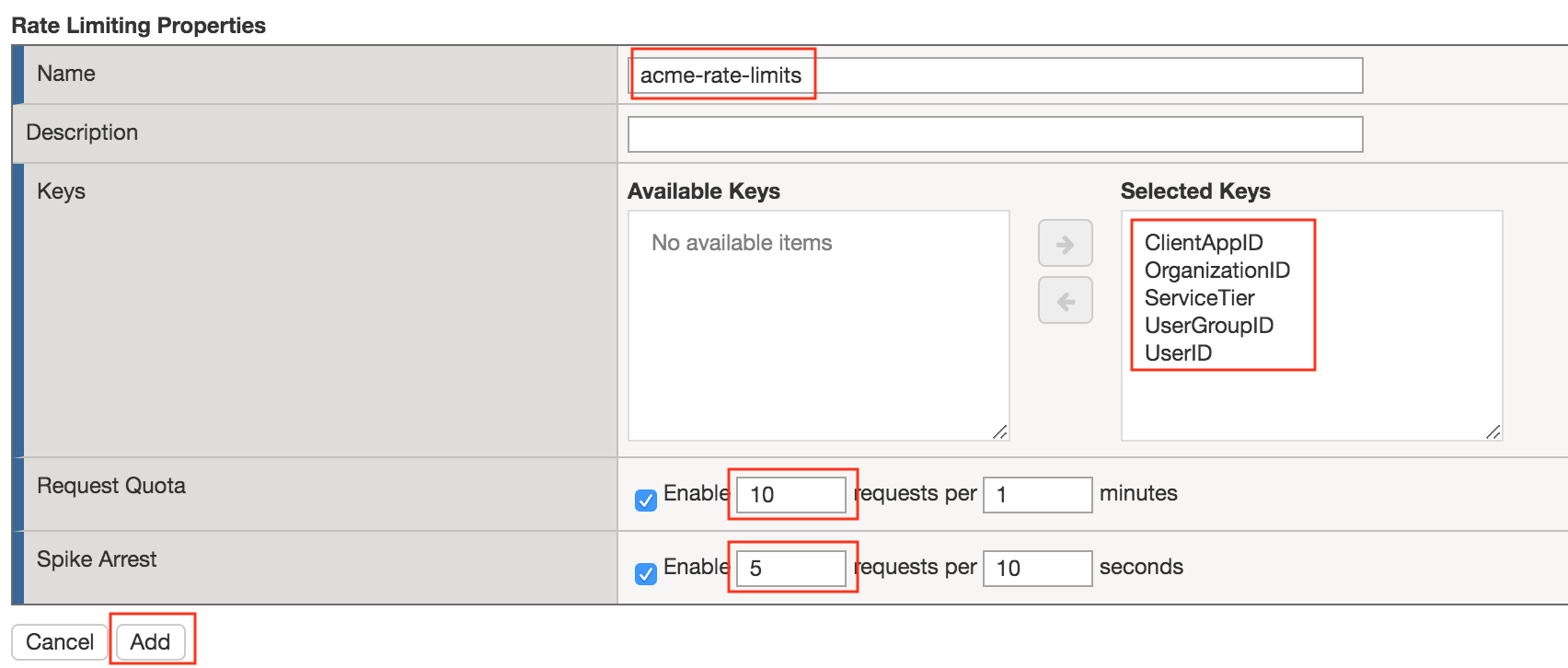

2. Enter the Name acme-rate-limits

3. Move all five keys under Selected Keys

4. Enter 10 for the number of requests per minute

5. Enter 5 for the number requests per second

6. Click Add.



7. Click Save



Task 4 - Apply the Rate Limiting Policy

1. Click Rate Limiting from the ribbon

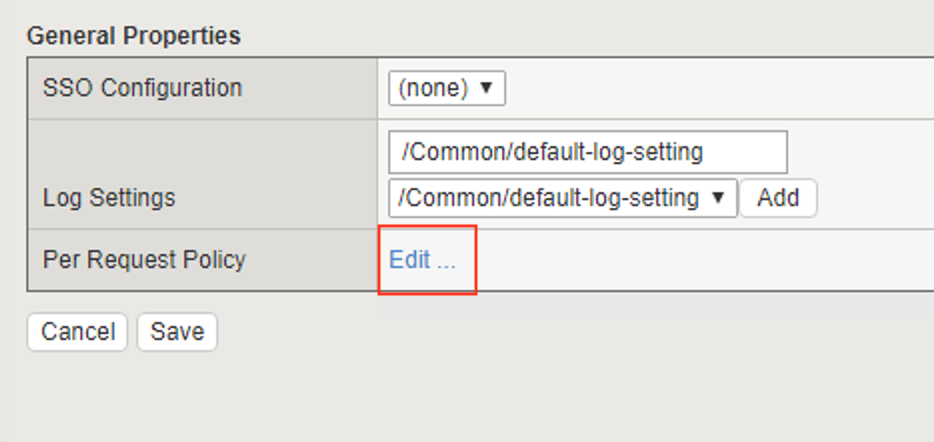

2. Click Edit Per Request Policy

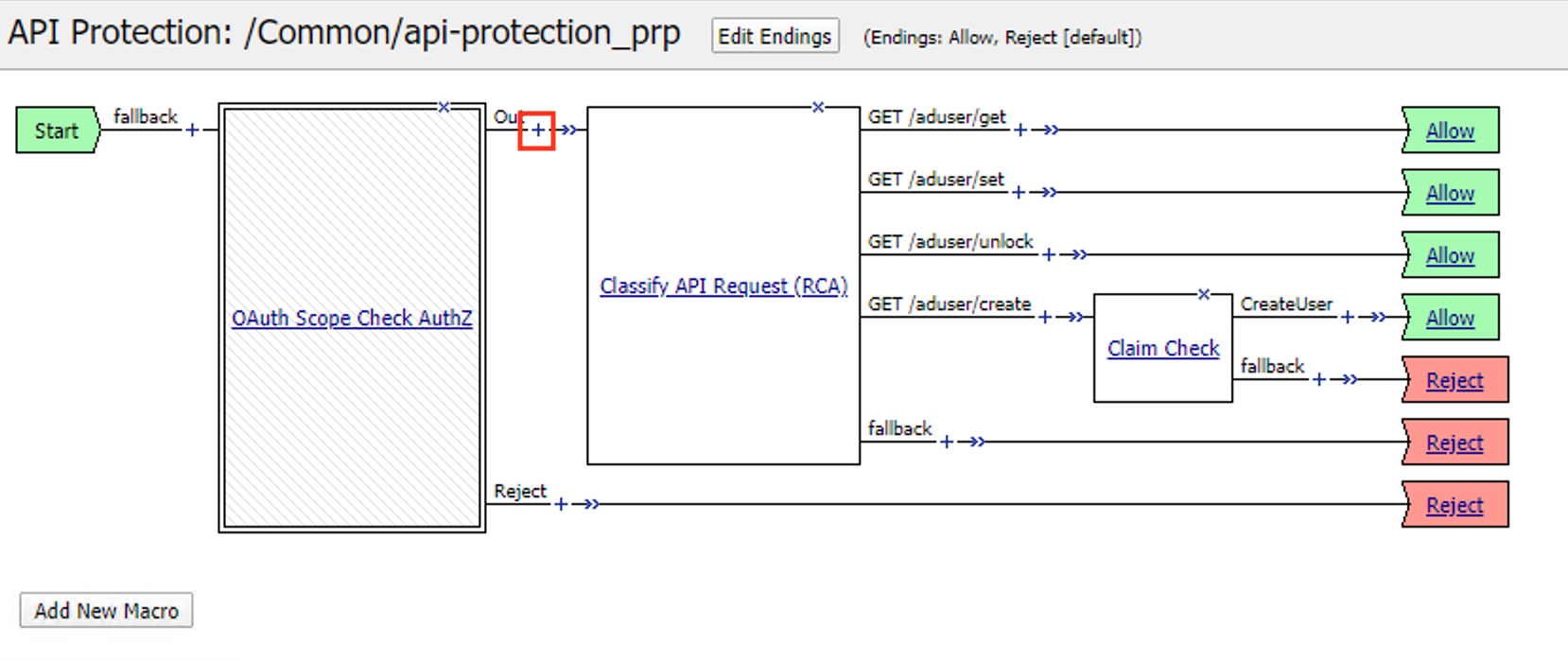

3. Click the + (Plus Symbol) on the Out branch of the OAuth Scope Check AuthZ Macro

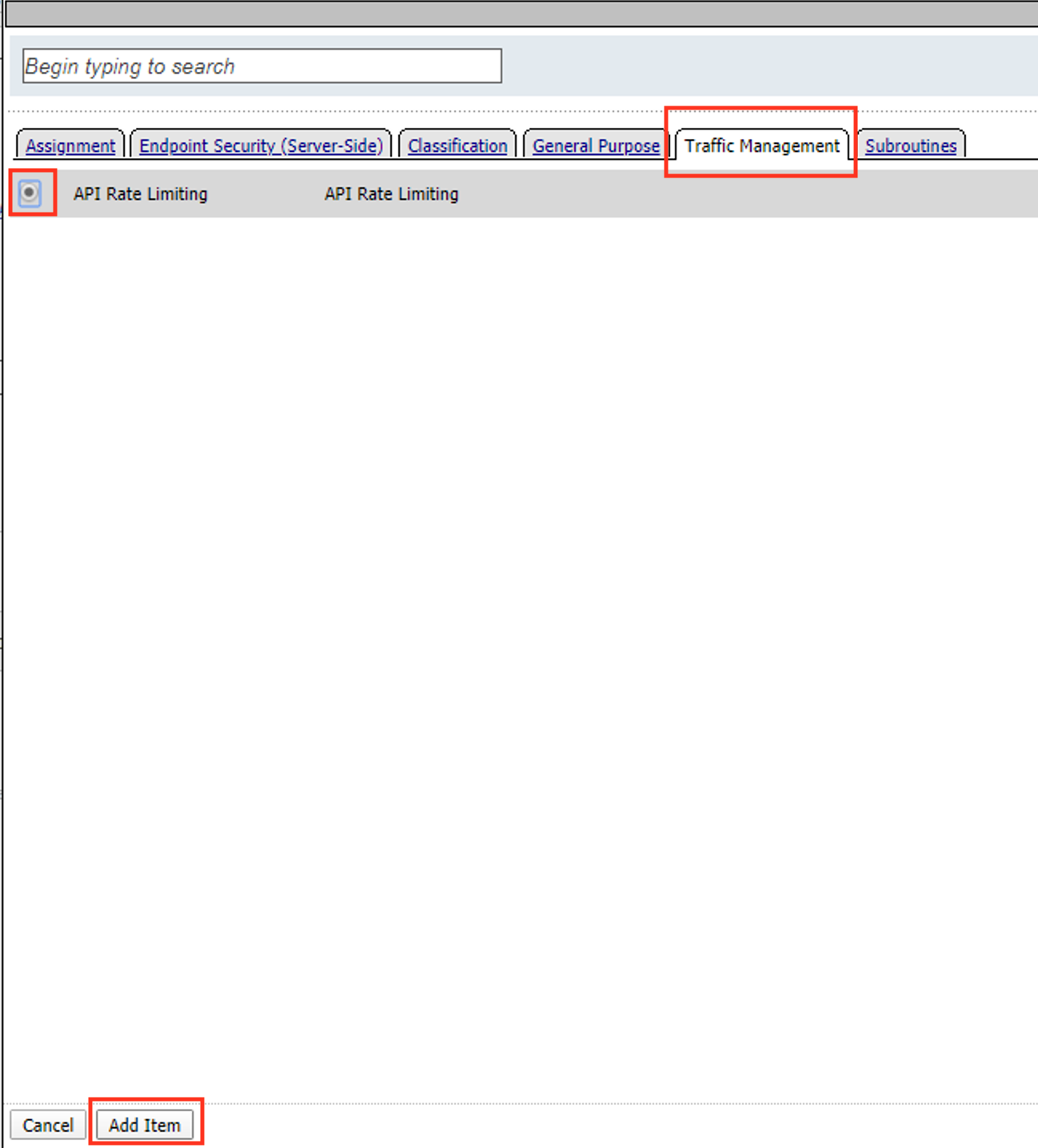

4. Click the Traffic Management tab

5. Select API Rate Limiting

6. Click Add Item

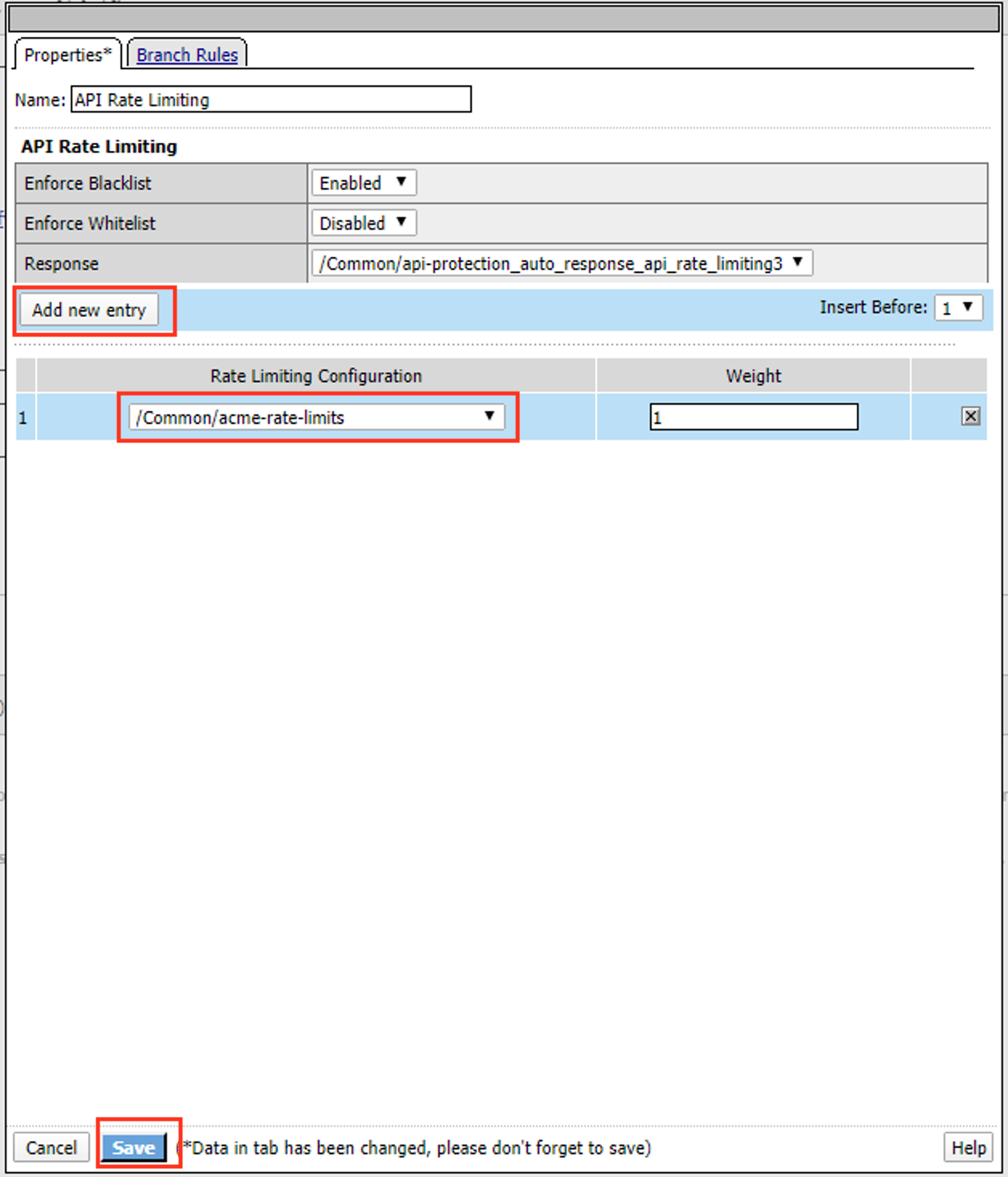

7. Click Add new entry

8. Select acme-rate-limits

9. Click Save

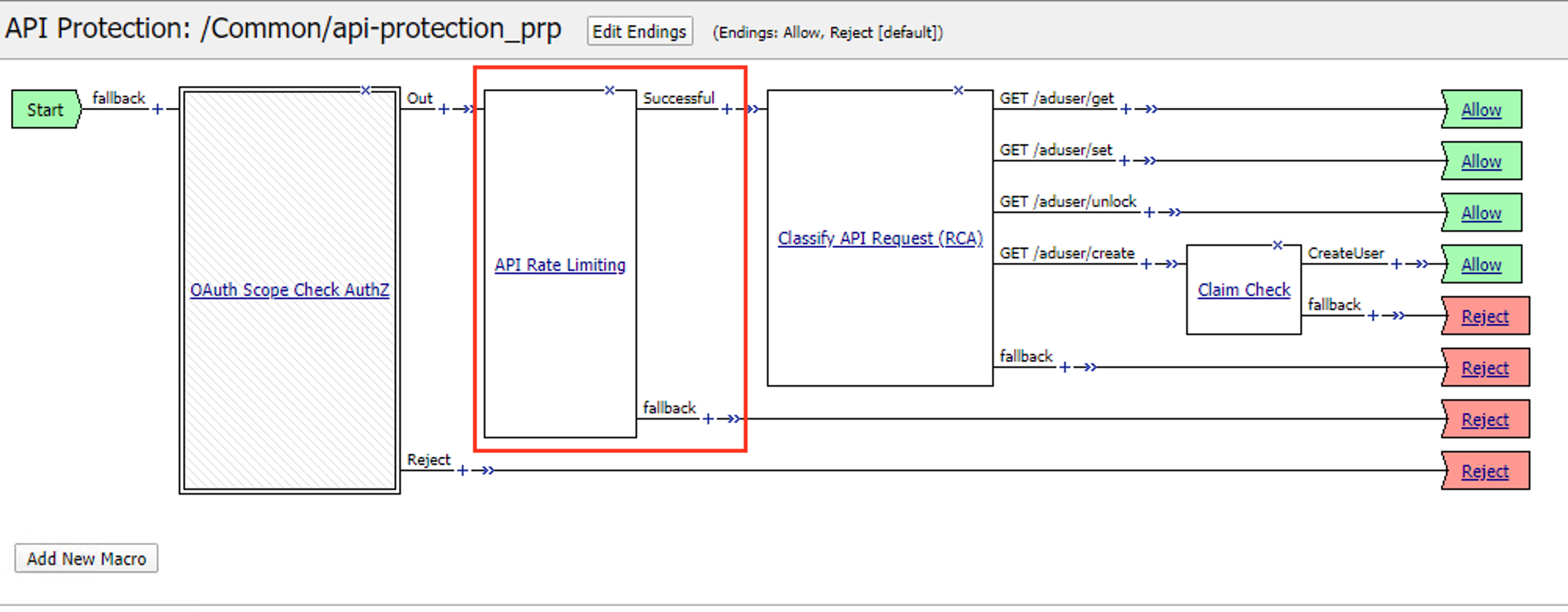

10. Verify the Rate Limiting agent now appears in the appropriate location



Task 5 - Test Rate Limiting

1. From Postman, return to Runner

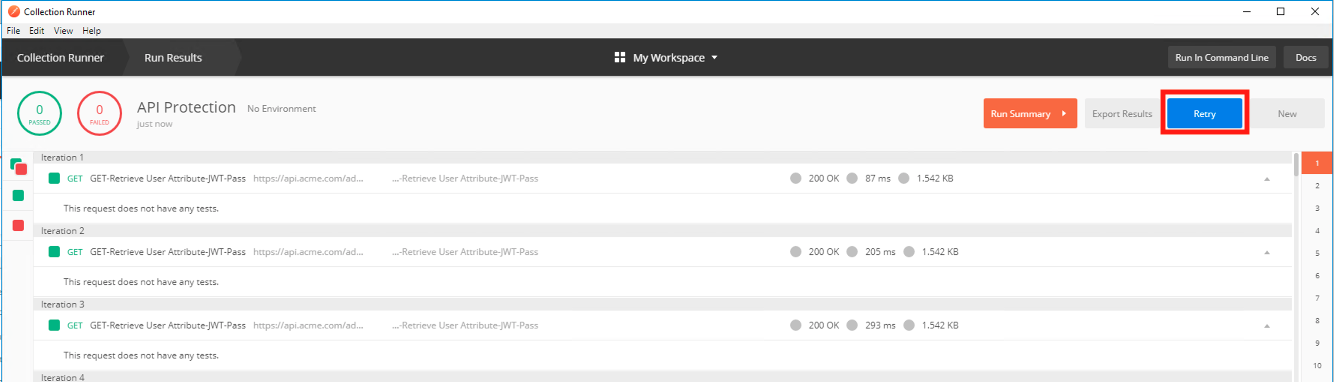

2. Click Retry to rerun the request an additional 100 times.

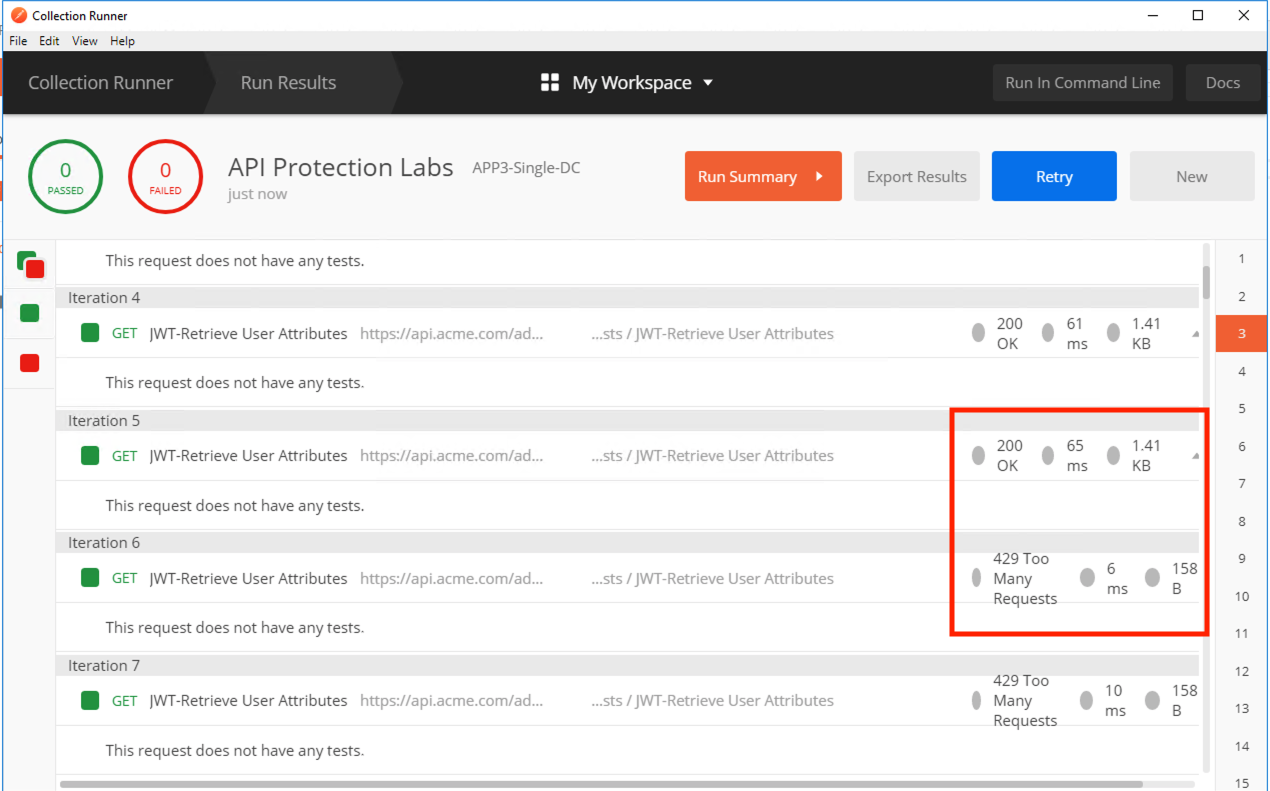

3. On the 6th request you begin to receive a 429 Too Many Requests response status code
