Lab 1.5 - Create a Pool

In this section you create a pool that contains the IP address of the CentOS server hosting the website requiring mTLS.

Task - Create the Pool

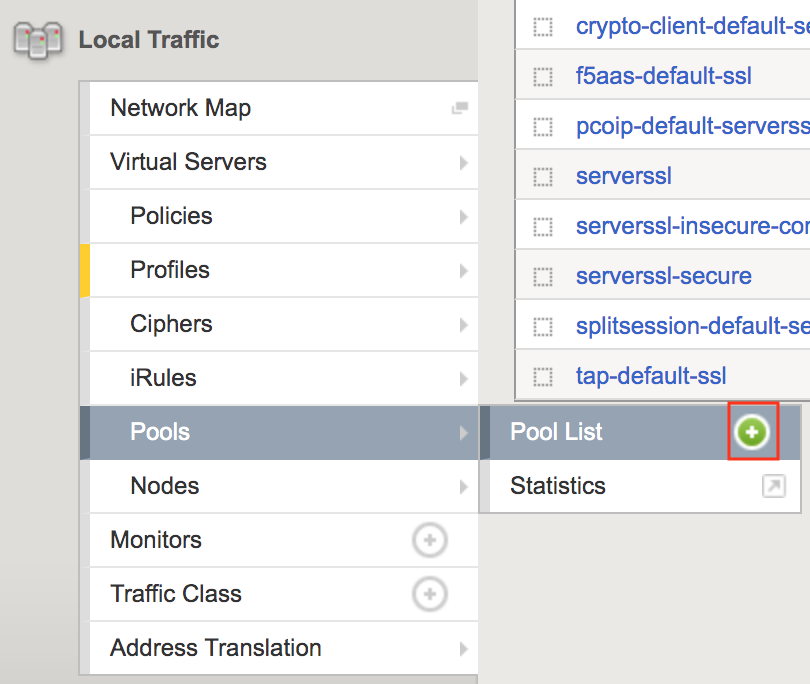

1. Navigate to Local Traffic >> Pools >> Pool List, then click the + (plus symbol) to create a new Pool

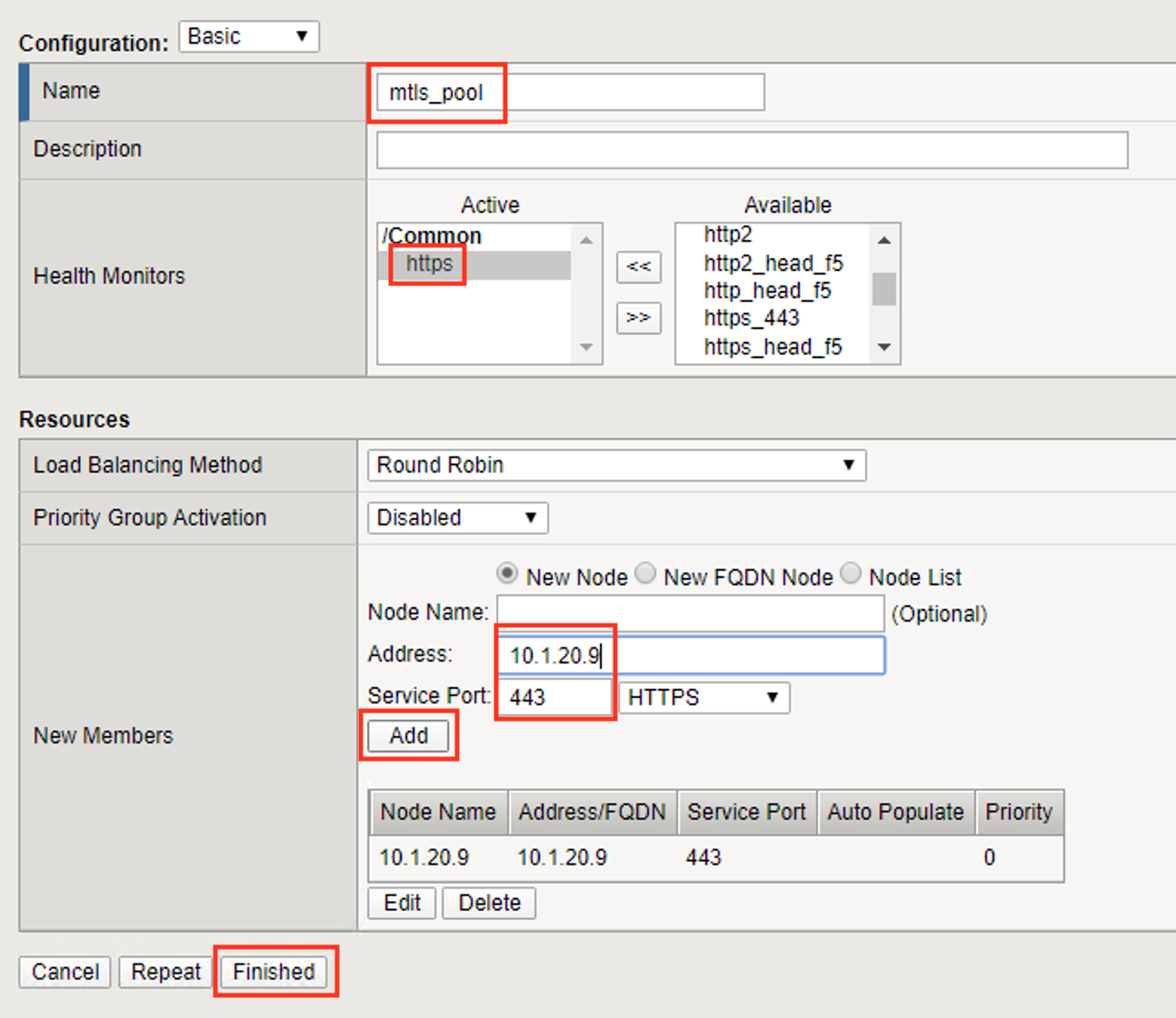

2. Enter mtls_pool for the Pool Name

3. Select https from the list of available monitors

4. Enter 10.1.20.9 for the member address

5. Enter 443 for the member port

6. Click add

7. Click Finished
